first car tpms system with 2.4G bluetooth function in china with
high quality..accurate.safe
Product Brief Introduction
Blue tooth tire pressure monitoring system is a Bluetooth 4.0,make
the tire's tire temperature & pressure and other real-time data
transmission to the intelligent display device safety monitoring
system, where the sensor and display device functions as follows:

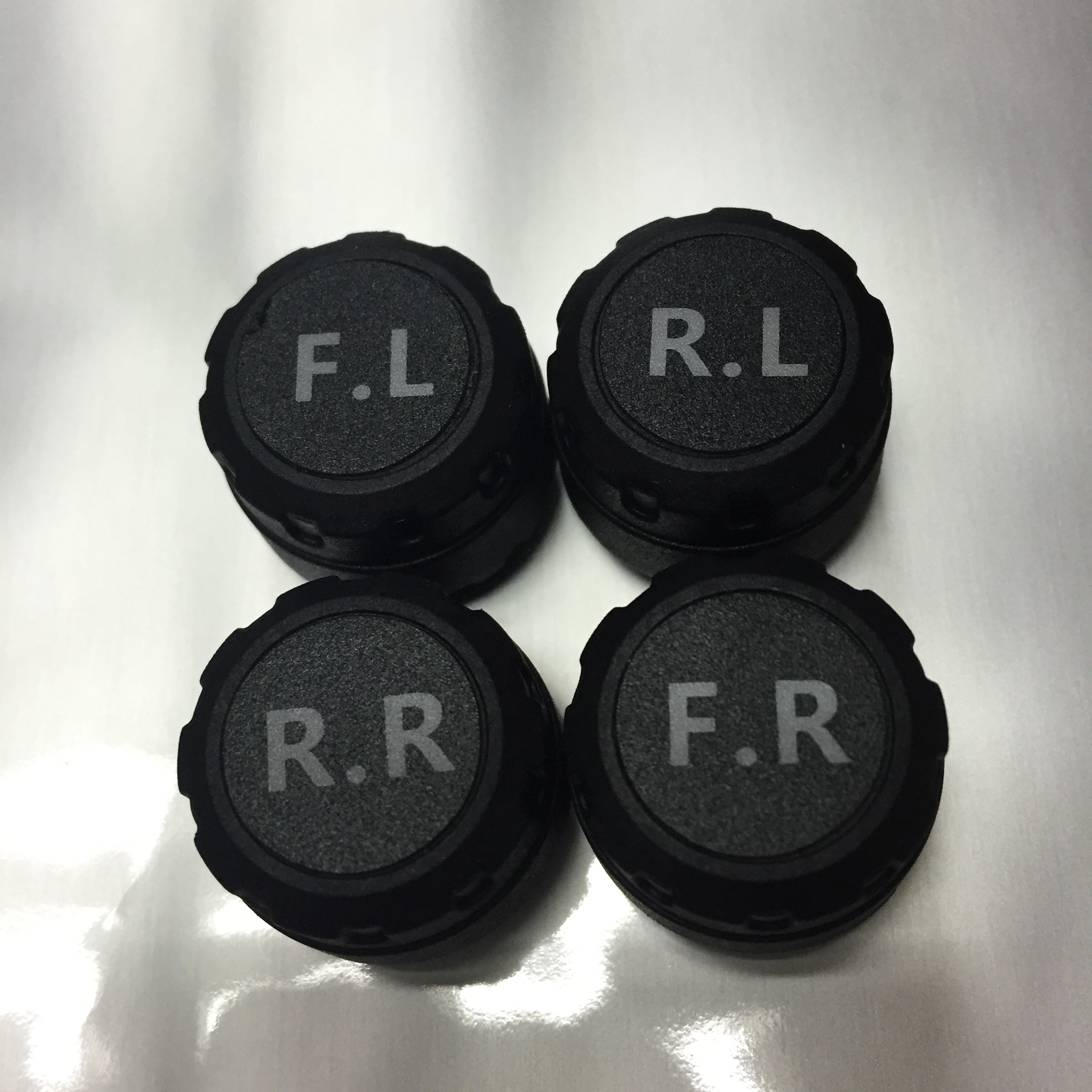

sensor:Built-in and built-out two kinds type,Respectively installed
on the car four tires,The sensor put car tire temperature and
pressure etc. real-time data uploaded to the display device via
bluetooth “intelligent tire pressure ”apps；
Display Device:smart phone,Cloud mirror and navigation download and
install "intelligent tire pressure" APP as the display
terminal,Tire temperature, tire pressure, gas leak, low power,
voice, Settings, binding sensors, tire, help etc., will through the
APP to display and Settings；
Display device system requirements:
Smart phones require:For android 4.3 above systems or apple IOS7.0
version above, and mobile phone bluetooth requires version 4.0 or
above；
Cloud mirror and navigation demands: support standard bluetooth
version 4.0 or above, more than android 4.3 system Download and
install software:
Method One,In the major mobile phone apple APP STORE or android APP
STORE, search download and install software APP "intelligent tire
pressure"；
Method Two,Scan the instruction on the back or gift box on the back
of QR code to download and install ；
Scan the QR code to download the APP
Remark:clound mirror,Navigation as the resolution and the size of
the display is difference, there will different, so is given
priority to with smart phones do this manual.
Specification:
| project | parameter |
| working voltage | 3V |
| Operating current | 540uA |
| Sleep current | 2.4uA |
| working temperature | -30℃-80℃ |
| Tire pressure detection range | 100-900kpa |
| Accuracy of tire pressure detection | ±10kpa |
| Tire temperature detection range | -30℃-80℃ |
| Accuracy of tire temperature | ±3℃ |
| Bluetooth working frequency | BLE4.0 2.4GHz |
| Bluetooth transmit power | 0dBm MAX |
| Display mode | APP(android 4.3+,ios 7.1+),offer appSDK |
| response time | ≤6s |
| Working humidity | 95% MAX |
| Waterproof grade | IP67 |
| Battery | CR1632 120mAh |
| Battery life | 400 days |
| weight | 9.6g±*4 |
Common problems
Mobile phone just installed APP, sensor ID code set complete
vehicles on the road, but no data?
Answer; Please restart the phone APP and confirm the bluetooth is
open.
Abnormal tyre situation APP page hint, but there is no voice
prompt?
Answer; Please make sure the voice prompt function of APP is open,
or check whether mobile phone into the mute mode or voice were cut
to the minimum volume.
How to change the external type sensor batteries?
Answer; Need to unload the sensor from the value, with open arm
after turn on the sensor change new battery, to use open wrench
fastening installed on the tyres.
Have any other question pls don't hesitate to keep in touch with
us.
